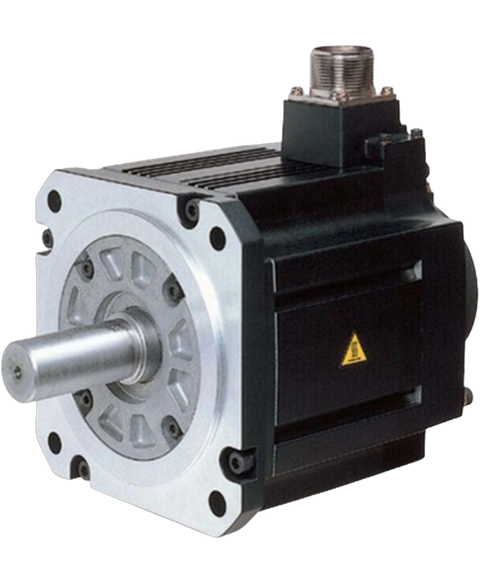

Mitsubishi HF-SP352K
Catalog number HF-SP352K is a servo motor designed and manufactured by Mitsubishi Electric. With a rated output of 3.5 kW, it provides the necessary torque with a rated value of 16.7 Nm and a maximum torque of 50.1 Nm. Operating at speeds up to 2000 RPM and reaching a maximum speed of 3000 RPM, it delivers precise and efficient performance. The motor's structure is totally enclosed, ensuring natural cooling and a high IP67 protection rating. With its robust construction and weight of 19 kg (41.9 lbs), the HF-SP352K servo motor is built to handle demanding tasks while offering accurate speed and position detection through its encoder system.
This Mitsubishi HF-SP352K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805424176.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-SP352K |
| Weight | 30.00 lbs (13.61 kg) |
| Model Type | Servo motor |
| Series | medium inertia medium capacity |
| Voltage class | 200VAC-compatible |
| Rated output | 3.5 kW |
| Rated torque | 16.7 Nm |
| Maximum torque | 50.1 Nm |
| Rated speed | 2000 RPM |
| Maximum speed | 3000 RPM |
| Shaft shape | With keyway |
| Power rate at continuous rated torque | 37.2 kW/s |
| Inertia moment | 75J |
| The recommended ratio of load inertia moment to servo motor shaft inertia moment | 15 times or less |
| Rated current | 16A |
| Maximum current | 48A |
| Brand | Mitsubishi |
