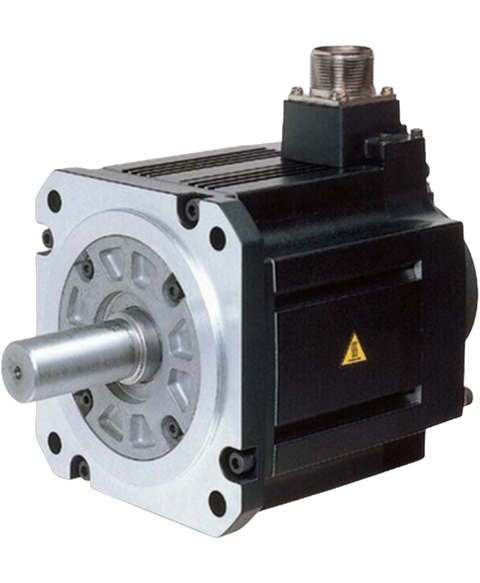

Mitsubishi HF-SP2024K
The HF-SP2024K is a rotary servo motor from Mitsubishi’s HF Series, designed for medium-capacity applications. It delivers a rated output of 2.0 kW and operates effectively at a rated speed of 2000 RPM while achieving a maximum rotation speed of 3000 RPM.
This Mitsubishi HF-SP2024K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805401580.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC Rotary Servo Motor |
| Product Line | HF Series |
| Part Number | HF-SP2024K |
| Weight | 27.00 lbs (12.25 kg) |
| Capacity | Medium |
| Feedback Encoder | 18-Bit Feedback Encoder |
| Rated Output | 2.0 kW |
| Rated Speed | 2000 RPM |
| Type of Enclosure | IP67 |
| Oil Seal | Not Included |
| Inertia Type | Medium Inertia |
| Rated Torque | 9.55 Nm |
| Maximum Torque | 28.6 Nm |
| Instantaneous Permissible Speed | 3450 RPM |
| Maximum Rotation Speed | 3000 RPM |
| Cooling Method | Natural Cooling |
| Supply Voltage Class | 400V AC Class |
| Power Supply Voltage | 380-480V AC |
| Brand | Mitsubishi |
