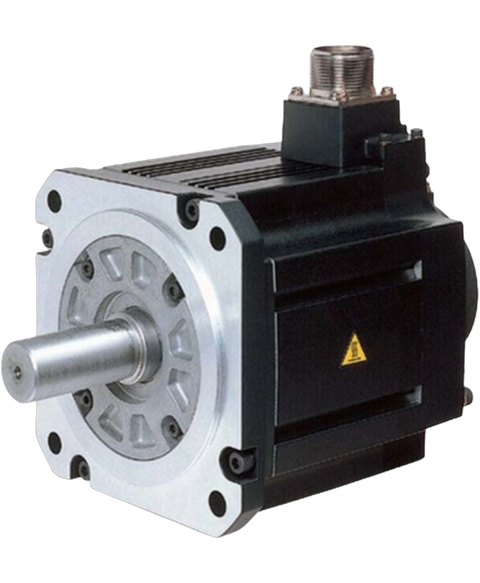

Mitsubishi HF-SP152
The HF-SP152 rotary servo motor from Mitsubishi's HF Series operates effectively with a rated speed of 2,000 RPM. This unit maintains a capacity suited for medium-scale applications, delivering reliable performance across various operating conditions.
This Mitsubishi HF-SP152 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805413822.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-SP152 |
| Weight | 30.06 lbs (13.64 kg) |
| Product | Rotary Servo Motor |
| Rated Speed | 2,000 revolutions per minute (RPM) |
| Rated Current | 8 Amps |
| Flange Size | 130 x 130 millimeters |
| Capacity | Medium Capacity |
| Shaft Shape | Standard (Straight Shaft) |
| Maximum Speed | 3,000 revolutions per minute (RPM) |
| Torque Rating | 7.16 Newton-meters |
| Voltage Class | 200VAC Class |
| Output Power Rating | 1.5 kilowatts |
| Inertia | Medium Inertia |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | -15 to 70 degrees Celsius |
| Brake | No Electromagnetic Brake |
| Maximum Current | 24 Amps |
| Brand | Mitsubishi |
