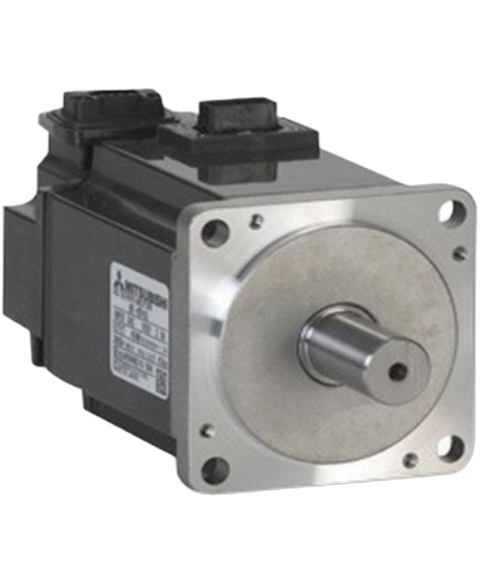

Mitsubishi HF-MP43B
The HF-MP43B is an AC rotary servo motor offered by Mitsubishi, designed with ultra-low inertia for precise control and responsiveness in small capacity applications. This model operates effectively within a temperature range of 32 to 104 degrees Fahrenheit and features a rated output of 0.4 kW.
This Mitsubishi HF-MP43B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805605194.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-MP43B |
| Weight | 3.50 lbs (1.59 kg) |
| Motor | AC Rotary Servo Motor |
| Inertia Type | Ultra-Low Inertia |
| Capacity | Small Capacity |
| Shaft Type | Straight Shaft |
| IP Rating | IP65 |
| Operating Temperature | 32 to 104 degrees Fahrenheit |
| Output Rating | 0.4 kW |
| Torque (Rated) | 1.3 Nm |
| Torque (Maximum) | 3.8 Nm |
| Speed (Rated) | 3000 r/min |
| Speed (Maximum) | 6000 r/min |
| Structure | Totally-Enclosed Structure |
| Current (Rated) | 2.7A |
| Current (Maximum) | 8.6A |
| Electromagnetic Brake | Built-In Electromagnetic Brake |
| Brand | Mitsubishi |
