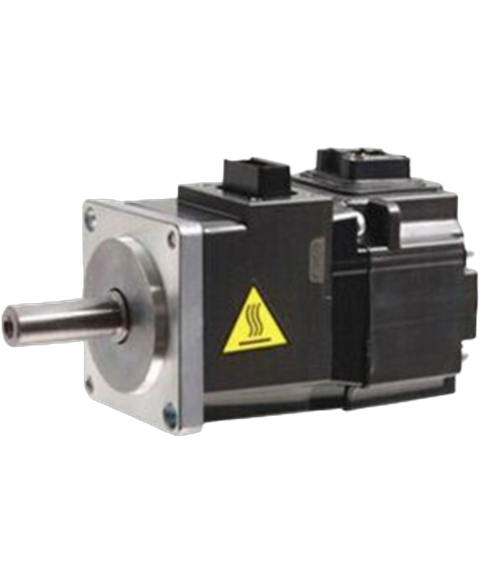

Mitsubishi HF-MP053
The Mitsubishi HF-MP053 is a compact brushless servo motor designed for precise motion applications. Its rated speed is 3000 RPM, with a peak capability of 6000 RPM, ideal for dynamic environments.
This Mitsubishi HF-MP053 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805677190.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Brushless Servo Motor |
| Product Line | HF Series |
| Part Number | HF-MP053 |
| Weight | 0.56 lbs (0.26 kg) |
| Nominal Torque | 0.16 Nm |
| Maximum Torque | 0.48 Nm |
| Rated Speed | 3000 RPM |
| Maximum Speed | 6000 RPM |
| Current (Rated) | 1.1A |
| Current (Maximum) | 3.2A |
| Electromagnetic Brake | Not Included |
| Oil Seal | Not Included |
| Capacity | Small Capacity |
| Shaft | Straight Shaft |
| IP Rating | IP65 |
| Inertia | Ultra-Low Inertia |
| Output Rating | 0.05 kW |
| Operating Temperature | 0 to 40 degrees Celsius (Non-Freezing) |
| Brand | Mitsubishi |
