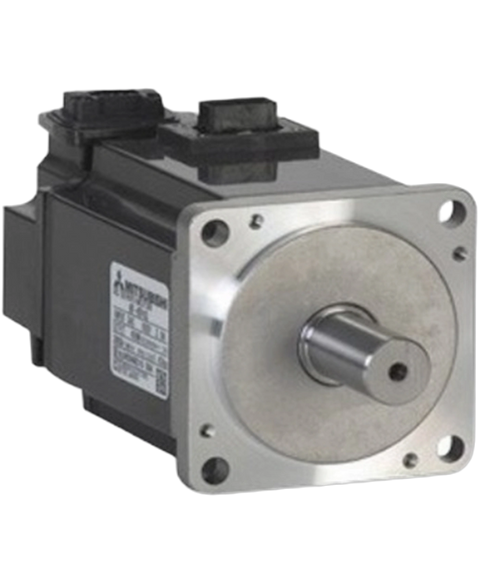

Mitsubishi HF-KP73J
The HF-KP73J is a rotary servo motor from Mitsubishi's HF series, designed for precision tasks. With a rated active power of 0.75 kW, it operates efficiently at a 200VAC class voltage, achieving a nominal torque of 2.4 Nm and a maximum torque of 7.2 Nm.
This Mitsubishi HF-KP73J is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805445131.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-KP73J |
| Weight | 9.00 lbs (4.08 kg) |
| Product | Rotary Servo Motor |
| Inertia | Low Inertia |
| Rated Current | 5.2A |
| Voltage Class | 200VAC Class |
| Rotational Speed | 3000 rpm |
| Rated Active Power | 0.75 kW |
| Torque | 2.4 Nm Nominal |
| Maximum Torque | 7.2 Nm |
| Maximum Speed | 6000 rpm |
| Shaft Type | Straight Shaft |
| Mounting Mode | 80x80 mm Flange Mounting |
| IP Rating | IP65 |
| Capacity | Small Capacity |
| Oil Seal | Included |
| Brand | Mitsubishi |
