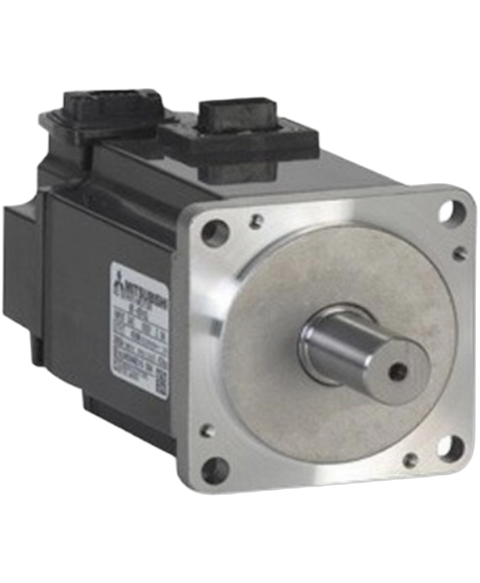

Mitsubishi HF-KP43K
The Mitsubishi Electric HF-KP43K motor is an AC servo motor. This device is part of the MELSERVO product series. The HF-KP43K servo motor is a low-inertia and small-capacity servo motor that has a shaft with a keyway and a key. It operates with an output power rating of 400 Watts (0.4 kW). The HF-KP43K servo motor can be used in a variety of general-purpose industrial applications. Its rated speed is 3000 RPM and its maximum speed is 6000 RPM.
This Mitsubishi HF-KP43K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801440897.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC Servo Motor |
| Product Line | HF Series |
| Part Number | HF-KP43K |
| Weight | 3.25 lbs (1.47 kg) |
| Series | MELSERVO |
| Encoder | Supported |
| Rated Output Power | 400W (0.4kW) |
| Rated Current | 2.7A |
| Supply Voltage | 200V AC |
| Rated Torque | 1.3Nm |
| Rated Speed | 3000 RPM |
| Flange Mounting Option | 60x60mm |
| Ingress Protection | IP65 |
| Operating Temperature Range | 0°C to +40°C |
| Brand | Mitsubishi |
