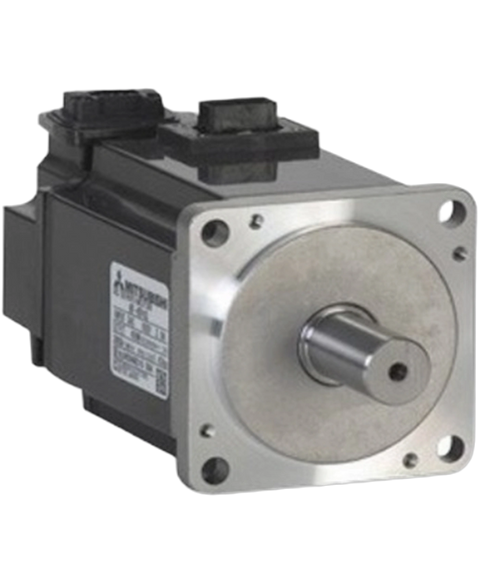

Mitsubishi HF-KP43BK
The HF-KP43BK series is backed by Mitsubishi's renowned engineering excellence and commitment to quality. Rigorous testing and quality assurance processes guarantee that these servo motors adhere to the highest industry standards, ensuring consistent and dependable performance in a wide range of applications.When you adopt the Mitsubishi HF-KP43BK Servo Motor into your automated procedures, you will notice a considerable increase in both the power and accuracy of those procedures. This minuscule device has a frame size of 40 mm and a rated speed of 3000 revolutions per minute (rpm). It has a power output of 0.4 kW. It is equipped with a 17-bit incremental encoder, which gives it the capability to deliver precise control for a wide variety of automation applications.
This Mitsubishi HF-KP43BK is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805434789.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-KP43BK |
| Weight | 4.00 lbs (1.81 kg) |
| Type | Servo Motor |
| Motor Frame Size | 40 mm |
| Rated Output | 0.4 kW |
| Rated Voltage | 200 V |
| Rated Speed | 3000 rpm |
| Maximum Speed | 4500 rpm |
| Rated Torque | 1.27 Nm |
| Maximum Torque | 3.82 Nm |
| Encoder Type | Incremental encoder |
| Encoder Resolution | 131,072 pulses/revolution (17-bit) |
| Motor Wiring | 3-phase |
| Rotor Inertia | 0.06 kg·cm² |
| Rated Current | 3.2 A |
| Power Supply | Single-phase 200 V |
| Brand | Mitsubishi |
