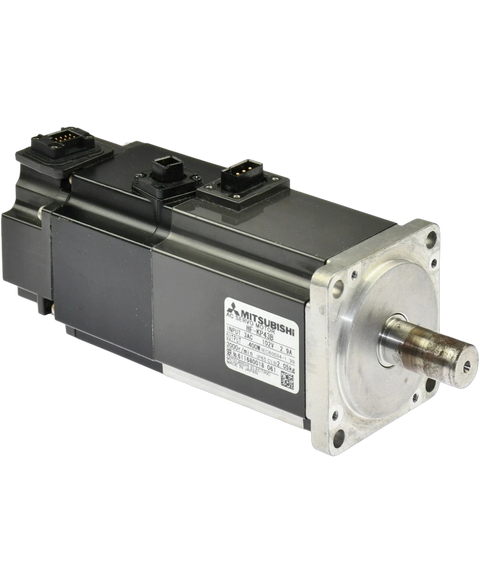

Mitsubishi HF-KP43B
Mitsubishi's HF-KP43B rotary AC servo motor is renowned for its dependability and accuracy. It has an operating voltage of 200 VAC with a current of 2.7 amps and 400 watts of power output. The motor is appropriate for applications that require precise and controlled motion because it has a torque rating of 1.3 N-m. This servo motor's rotational speed of 3000 rev,min for effective and quick functioning. Its motor inertia is 0. 00005kg.m2 (0.5kg.cm2), enables responsive operations.
This Mitsubishi HF-KP43B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805544102.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-KP43B |
| Weight | 4.69 lbs (2.13 kg) |
| Series | MELSERVO J3 (HF-KP) |
| Main function | AC servo motor |
| Supply voltage | 200 VAC class |
| Rated current | 2.7 amps |
| Rated active power | 400W / 0.4kW |
| Rotational speed | 3000 rpm; 6000rpm (maximum) |
| Torque | 1.3Nm nominal; Maximum 3.8Nm |
| Moment of inertia | 0.00005kg.m2 (0.5kg.cm2) |
| Mounting mode | Flange mounting (60x60mm) |
| Degree of protection | IP65 |
| Feedback Type | 18-Bit encoder |
| Electromagnetic Brake | Yes |
| Shaft | Straight |
| Brand | Mitsubishi |
