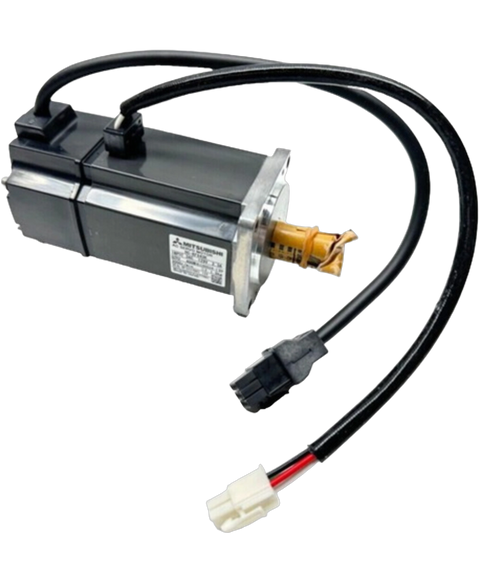

Mitsubishi HF-KP23JKW04-S6
The HF-KP23JKW04-S6 servo motor from Mitsubishi is engineered to excel in demanding applications with a rated output of 0.2 kW. This motor achieves a rated speed of 3000 rpm and supports operational frequencies of 50,60Hz.
This Mitsubishi HF-KP23JKW04-S6 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805672157.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-KP23JKW04-S6 |
| Weight | 2.00 lbs (0.91 kg) |
| Mounting | Flange Mounting |
| Frequency | 50/60Hz |
| Rated Speed | 3000 rpm |
| Output Rating | 0.2 kW |
| Current Rating | 1.4 A |
| Protection Level | IP65 |
| Operating Temperature | 0 to 40 degrees Celsius |
| Inertia | Ultra Low Inertia |
| Electromagnetic Brake | Not Included |
| Oil Seal | Included |
| Shaft | Shaft with Keyway |
| Product | Servo Motor |
| Brand | Mitsubishi |
