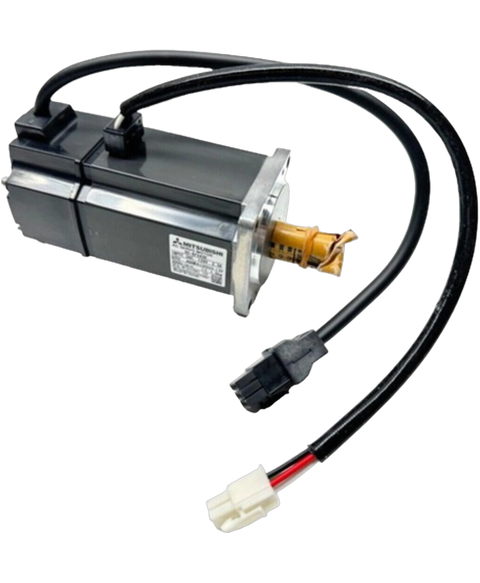

Mitsubishi HF-KP23
The Mitsubishi HF-KP23 is a 200W , 0.2kW rated AC brushless rotary servo motor. It includes an 18-bit absolute feedback encoder and is rated for a supply voltage of 200 volts. The motor has a nominal torque of 0.64Nm and a rotating speed of 3000 rpm. It has a 60x60mm flange mounting and an IP65 rating for temperatures ranging from 0 to 40 °C. The HF-KP23 servo motor is a versatile servo motor utilized in a wide range of applications, including machine tools, robotics, and automation systems.
This Mitsubishi HF-KP23 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805527701.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC Servo Motor |
| Product Line | HF Series |
| Part Number | HF-KP23 |
| Weight | 2.00 lbs (0.91 kg) |
| Motor type | Low inertia/Small capacity |
| Rated output | 0.2 KW |
| Rated torque | 0.64 Nm |
| Maximum torque | 1.9 Nm |
| Rated speed | 3000 RPM |
| Maximum speed | 6000 RPM |
| Power rate at continuous rated torque | 16.9 kW/s |
| Shaft shape | Standard straight shaft |
| Electromagnetic brake | None |
| IP rating | IP65 |
| Brand | Mitsubishi |
