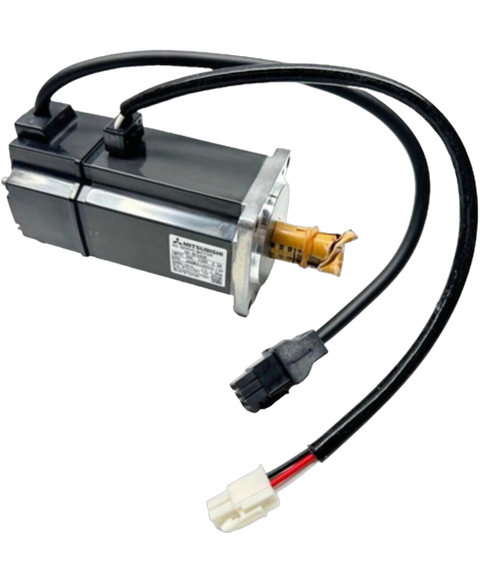

Mitsubishi HF-KP13D
The Mitsubishi HF-KP13D belongs to the HF Series of AC servo motors. Tailored for applications that require small power capacity, this motor exhibits a rated output of 0.1 kW and operates at a standard speed of 3000 rpm, capable of reaching a maximum speed of 6000 rpm.
This Mitsubishi HF-KP13D is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805430108.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC Servo Motor |
| Product Line | HF Series |
| Part Number | HF-KP13D |
| Weight | 2.00 lbs (0.91 kg) |
| Motor Capacity | Small Power Capacity |
| Electromagnetic Brake | Not Included |
| Rated Output | 0.1 kW |
| Rotational Speed | 3000 rpm |
| Shaft Type | D-Cut Shaft |
| Inertia | Low Inertia |
| Maximum Rotational Speed | 6000 rpm |
| Operating Temperature | 0 to 40 degrees Celsius |
| IP Rating | IP67 |
| Storage Temperature | -15 to 70 degrees Celsius |
| Rated Current | 0.8 Amps |
| Maximum Current | 2.4 Amps |
| Brand | Mitsubishi |
