Mitsubishi HF-KP053D

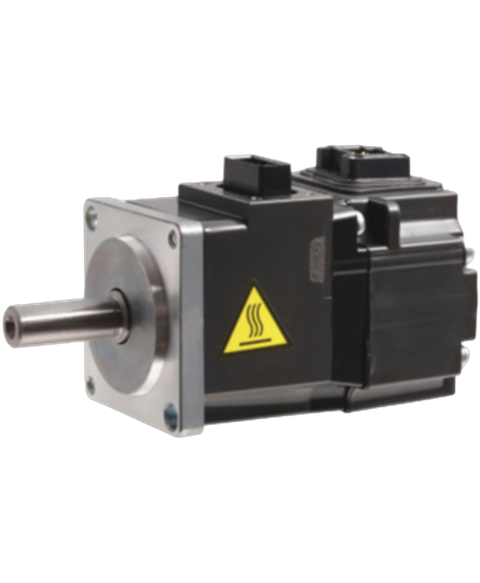

The Mitsubishi HF-KP053D is an AC rotary servo motor designed for fine control and efficiency. This model operates at a supply voltage of 200VAC, providing a power output of 50W and rated for optimal performance at 3000 RPM.
This Mitsubishi HF-KP053D is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805640351.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-KP053D |
| Weight | 0.69 lbs (0.31 kg) |
| Type of Motor | AC Rotary Servo Motor |
| Inertia Type | Low Inertia |
| Supply Voltage Class | 200VAC Class |
| Rated Current | 0.9A |
| Output Power | 50W |
| Rotational Speed | 3000 RPM |
| Nominal Torque | 0.16 Nm |
| Maximum Torque | 0.48 Nm |
| Maximum Current | 2.7A |
| Enclosure Rating | IP65 |
| Maximum Speed | 6000 RPM |
| Capacity | Small Capacity |
| Shaft | D-Cut Shaft |
| Brand | Mitsubishi |
