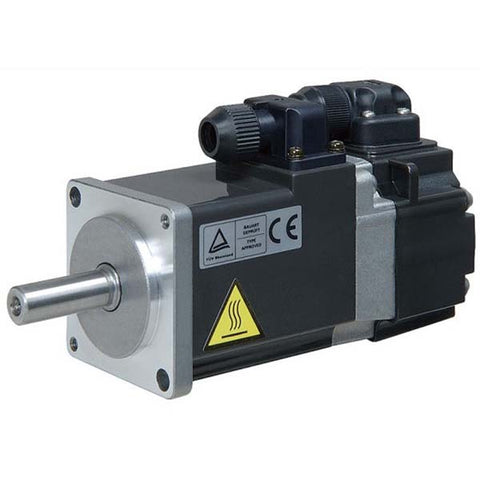

Mitsubishi HF-KN23
The HF-KN23 rotary servo motor from Mitsubishi's HF Series is engineered for precision applications. With a power rating of 200W, it operates efficiently at a supply voltage of 200VAC.
This Mitsubishi HF-KN23 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805454360.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HF Series |
| Part Number | HF-KN23 |
| Weight | 2.38 lbs (1.08 kg) |
| Motor Type | Rotary Servo Motor |
| Inertia | Low Inertia |
| Supply Voltage Class | 200VAC Class |
| Rated Current | 1.4A |
| Rated Active Power | 200W/0.2kW |
| Rotational Speed | 3000rpm |
| Torque | 0.64Nm Nominal |
| Maximum Torque | 1.9Nm |
| Mounting Mode | 60x60mm Flange Mounting |
| Encoder | Incremental Feedback Encoder |
| IP Rating | IP65 |
| Brand | Mitsubishi |
