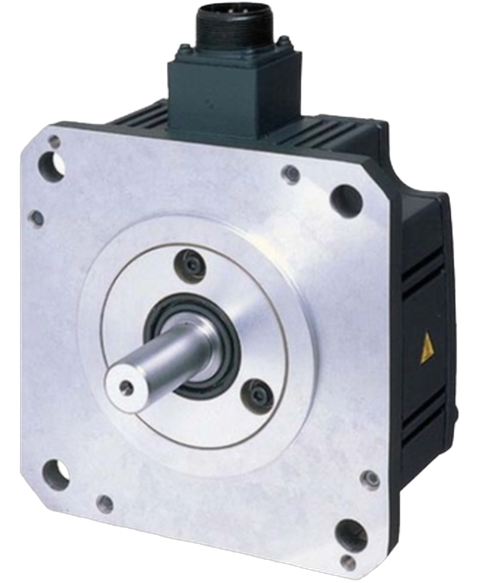

Mitsubishi HC-UP152
The HC-UP152 from Mitsubishi is a brushless AC servo motor that delivers reliable performance. It operates at an output power of 1.5 kW and achieves a rated speed of 2000 RPM—capable of a maximum speed of 3000 RPM, making it suitable for various control applications.
This Mitsubishi HC-UP152 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805310175.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-UP152 |
| Weight | 10.00 lbs (4.54 kg) |
| Type of Motor | Brushless AC Servo Motor |
| Shaft | Straight Shaft |
| Power Capacity | Medium Power Capacity |
| Inertia | Low Inertia |
| Structure | Flat Structure |
| Output Power | 1.5 kW |
| Rated Speed | 2000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Current | 9.7 Amps |
| Maximum Current | 29 Amps |
| Rated Torque | 7.16 Nm |
| Maximum Torque | 21.6 Nm |
| Brand | Mitsubishi |
