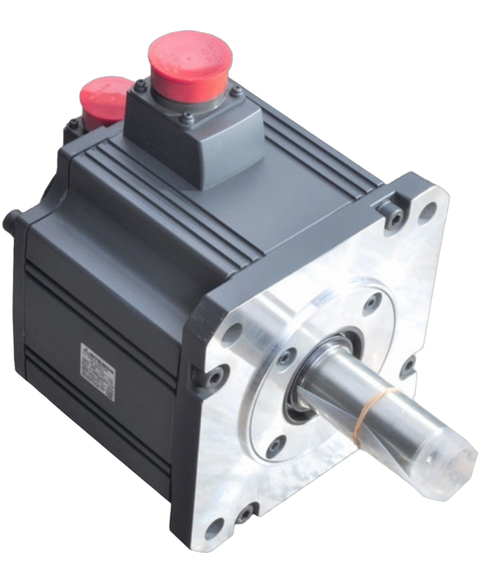

Mitsubishi HC-SFS702K
The Mitsubishi HC-SFS702K servo motor is a high-resolution unit designed for middle inertia and capacity applications. This product operates with a nominal current of 35 A and a peak current of 105 A, providing reliable performance in demanding contexts.
This Mitsubishi HC-SFS702K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801463965.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SFS702K |
| Weight | 20.00 lbs (9.07 kg) |
| Type of Product | Middle inertia, middle capacity, high resolution servo motor |
| Nominal Current Draw | 35 A |
| Design and Cooling Type | Totally enclosed, self-cooling with IP65 rating |
| Electromagnetic Braking | None |
| Included Components | Oil seal |
| Shaft Configuration | Equipped with a keyway (Keyless) |
| Peak Current Draw | 105 A |
| Momentary Speed Limit | 2300 r/min |
| Rated Torque for Continuous Operation | 33.4 N·m |
| Recommended Load Inertia Ratio to Motor Inertia | 15 times or less |
| Position/Speed Detection Mechanism | Encoder (131072 pulses/rev) |
| Moment of Inertia | 160 x 10⁻⁴ kg·m² |
| Power Rating During Steady Operation | 69.7 kW/s |
| Maximum Torque Capacity | 100.0 N·m |
| Brand | Mitsubishi |
