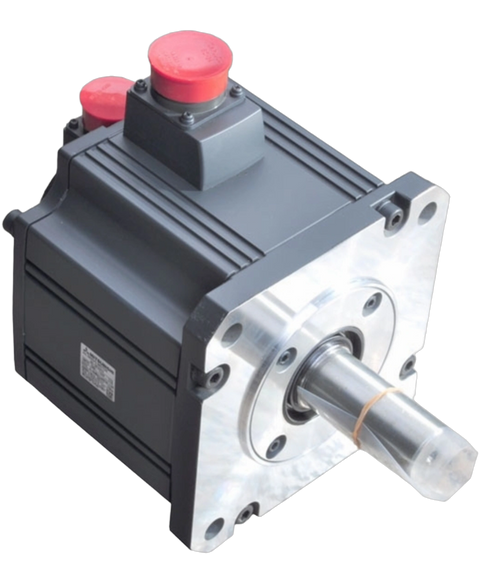

Mitsubishi HC-SFS52
The HC-SFS52 AC servo motor belongs to the Mitsubishi MELSERVO J2S series. It is explicitly classified as belonging to the HC-SF sub-range. This servo motor has a straight shaft, an integrated absolute feedback encoder with a 17-bit resolution, and an oil seal. The device operates on a 200-volt alternating current (AC) supply voltage. It has a rated active power of 0.5 kilowatts, a standard torque of 2.39 Newton meters (Nm), and a 2000 rpm rated rotational speed.
This Mitsubishi HC-SFS52 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805429986.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC servo motor |
| Product Line | MELSERVO HC |
| Part Number | HC-SFS52 |
| Weight | 11.19 lbs (5.07 kg) |
| Series | MELSERVO J2S |
| Functions | AC brushless rotary servo motor |
| Supply voltage | 200 V AC class |
| Rated current | 3.2 amps |
| Rated active power | 500W / 0.5kW |
| Rotational speed | 2000rpm / 3000rpm (maximum) |
| Torque | 2.39Nm nominal |
| Moment of inertia | 0.00066kg.m2 (6.6kg.cm2) |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Mounting mode | 130x130mm flange mounting |
| Degree of protection | IP65 |
| Brand | Mitsubishi |
