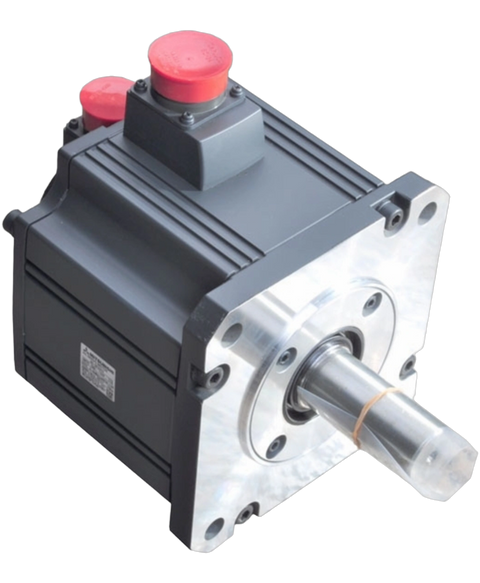

Mitsubishi HC-SFS352K
Mitsubishi's HC-SFS352K is an alternating current (AC) brushless rotary servo motor from the MELSERVO J2S series. This motor features a keyed shaft as well as a 17-bit absolute feedback encoder. It operates with a 200V class AC supply, a rated active power of 3.5 kilowatts, and a maximum rotational speed of 2500 rev,min. This servo can create a high torque of up to 50.1 Nm, making it ideal for applications that require precise and controlled movement.
This Mitsubishi HC-SFS352K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805665263.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC servo motor |
| Product Line | MELSERVO HC |
| Part Number | HC-SFS352K |
| Weight | 40.63 lbs (18.43 kg) |
| Series | MELSERVO J2S (HC-SF) series |
| Supply voltage | 200V AC class |
| Rated current | 17 amps |
| Maximum current | 51 amps |
| Rated active power | 3500W / 3.5kW |
| Rotational speed | 2000rpm; 2500rpm (maximum) |
| Torque | 16.7Nm nominal; Maximum 50.1Nm |
| Moment of inertia | 0.00820kg.m2 (82kg.cm2) |
| Mounting mode | 176x176mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP65 |
| Brand | Mitsubishi |
