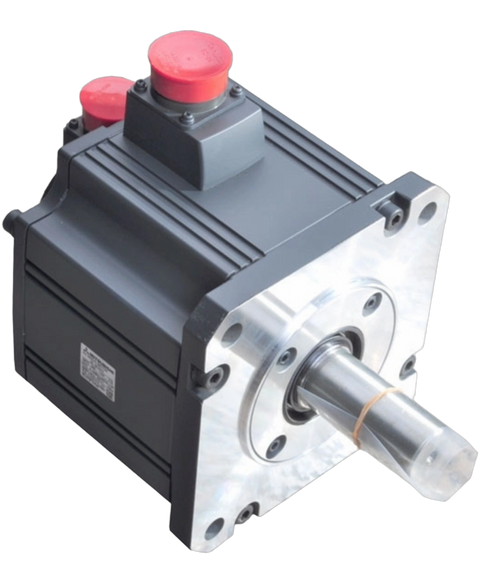

Mitsubishi HC-SFS352BK
The Mitsubishi HC-SFS352BK MELSERVO series motor is a middle-inertia and middle-capacity servo motor. Its rated output power is 3.5 kW. Additionally, its rated torque is 16.7 Nm, and its rated speed is 2000 rpm. The HC-SFS352BK servo motor operates at a rated current value of 17A and a maximum current value of 51A. It is 200V-compatible. The HC-SFS352BK servo motor features an electromagnetic brake and a shaft that comes with a keyway, but no key.
This Mitsubishi HC-SFS352BK is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805402735.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SFS352BK |
| Weight | 53.00 lbs (24.04 kg) |
| Model Type | Servo motor |
| Rated Output | 3.5 kW |
| Rated Torque | 16.7 Nm |
| Rated Speed | 2000 rpm |
| Maximum Speed | 2500 rpm |
| Power Rate at Continuous Rated Torque | 34.1 kW/s |
| Rated Current | 17A |
| Maximum Current | 51A |
| Speed/Position Detector | 17-bit encoder (Resolution per encoder/servo motor rotation: 131072 p/rev) |
| Electromagnetic Brake | Yes |
| Shaft Type | Keyway (without key) |
| Brand | Mitsubishi |
