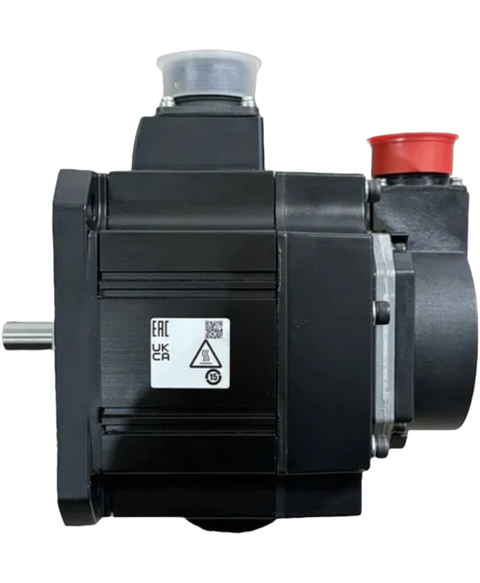

Mitsubishi HC-SFS152K
The HC-SFS152K is an AC brushless rotary servo motor manufactured by Mitsubishi Electric, and it comes with a keyed shaft, an absolute feedback encoder (17-bit), and an oil seal. It came from the MELSERVO J2S series and can be used for several operations related to high-precision positioning for reliable and efficient operation. It has a 30x130 millimeters (mm) flange mount and a case with an IP65 rating to protect it from dust and water.
This Mitsubishi HC-SFS152K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805301303.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC brushless rotary servo motor |
| Product Line | MELSERVO HC |
| Part Number | HC-SFS152K |
| Weight | 23.00 lbs (10.43 kg) |
| Supply voltage | 200Vac class |
| Rated current | 9 amps |
| Rated active power | 1500W / 1.5kW |
| Rotational speed | 2000rpm; 3000rpm (maximum) |
| Torque | 7.16Nm nominal; Maximum 21.6Nm |
| Moment of inertia | 0.00200kg.m2 (20kg.cm2) |
| Speed/position detector | 17-bit encoder |
| Enclosure rating | IP65 |
| Ambient air temperature for operation | 0 to +40 °C |
| Brand | Mitsubishi |
