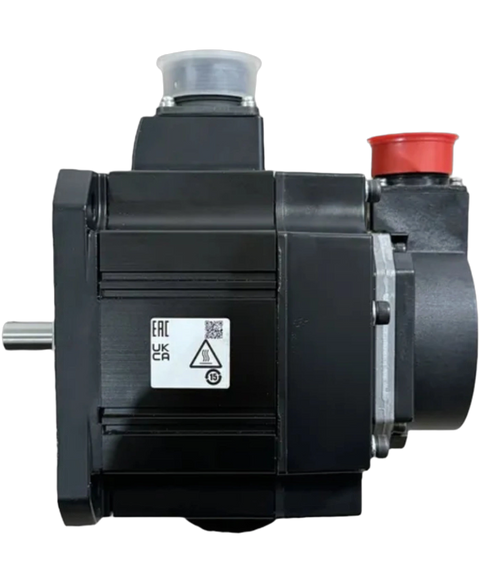

Mitsubishi HC-SFS102
The Mitsubishi HC-SFS102 motor is a MELSERVO series servo motor. It is 200V-compatible, and it is a middle-inertia and middle-capacity servo motor. Its rated output power is 1kW, and its rated speed is 2000 rpm. The HC-SFS102 servo motor’s maximum speed is 3000 rpm, and its instantaneous permissible speed of 3450 rpm. The HC-SFS102 servo motor's rated current is 6A, and its maximum current rating is 18A. Its structure is totally enclosed and self-cooled with an IP65 protection rating.
This Mitsubishi HC-SFS102 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801353696.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SFS102 |
| Weight | 15.00 lbs (6.80 kg) |
| Model Type | Servo motor |
| Series | MELSERVO |
| Rated Output Power | 1kW |
| Rated Speed | 2000 rpm |
| Maximum Speed | 3000 rpm |
| Instantaneous Permissible Speed | 3450 rpm |
| Rated Torque | 4.78 Nm |
| Maximum Torque | 14.4 Nm |
| Power rate at Continuous Rated Torque | 16.7 kW/s |
| Servo Amplifier's Built-in Regenerative Resistor Rating | 54 times/minute |
| Rated Current | 6A |
| Maximum Current | 18A |
| Structure | Totally-enclosed, self-cooled (protection type: IP65) |
| Brand | Mitsubishi |
