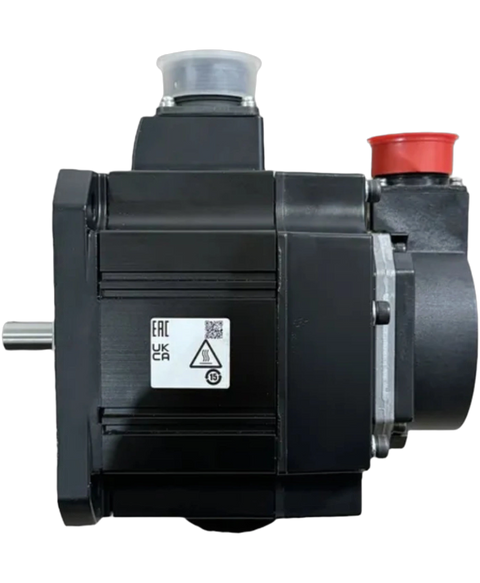

Mitsubishi HC-SF81
The HC-SF81 is a servo motor in the Mitsubishi MELSERVO HC series. It offers a power output of 0.85 kW and operates efficiently at a nominal 1000 RPM. Maximum rotational speeds reach 1500 RPM and instantaneous speeds of 1725 RPM.
This Mitsubishi HC-SF81 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805311277.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SF81 |
| Weight | 19.00 lbs (8.62 kg) |
| Motor Type | Servo Motor |
| Inertia | Middle Inertia |
| Capacity | Middle Capacity |
| Power Rating | 0.85 kW |
| Rotational Speed | 1000 RPM |
| Maximum Speed | 1500 RPM |
| Instantaneous Permissible Speed | 1725 RPM |
| Insulation Class | Class F |
| Enclosure Rating | IP65 |
| Operating Temperature Range | 0 to +40 °C |
| Shaft Type | Straight Shaft |
| Brand | Mitsubishi |
