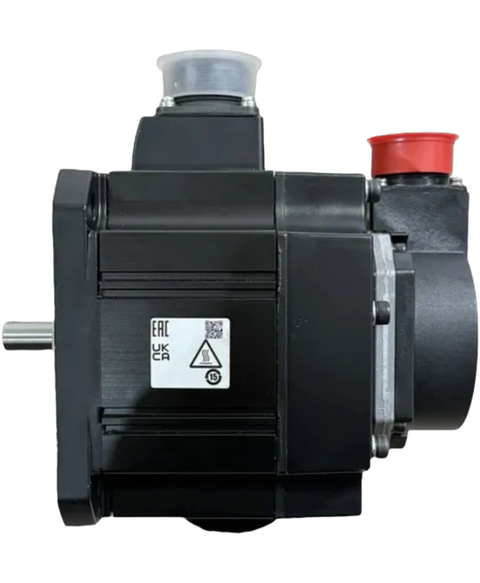

Mitsubishi HC-SF52BK-S2
The HC-SF52BK-S2 is an AC servo motor from Mitsubishi's MELSERVO HC series. This unit excels in providing substantial control with a rated output power of 0.5 kW and operates at a rated rotational speed of 2000 revolutions per minute.
This Mitsubishi HC-SF52BK-S2 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805449520.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SF52BK-S2 |
| Weight | 15.50 lbs (7.03 kg) |
| Motor Type | AC Servo Motor |
| Inertia | Middle Inertia |
| High-Resolution Motor | Yes |
| Capacity | Middle Capacity |
| Rated Output Power | 0.5 kW |
| Rated Rotation Speed | 2000 r/min |
| Rated Current | 3.2 Amps |
| Maximum Current | 9.6 Amps |
| 200VAC-Compatible | Yes |
| Structure | Totally Enclosed and Self-Cooled Structure |
| Protection Type | IP65 |
| Shaft | Keyway Shaft (No Key) |
| Brake | Electromagnetic Brake |
| Brand | Mitsubishi |
