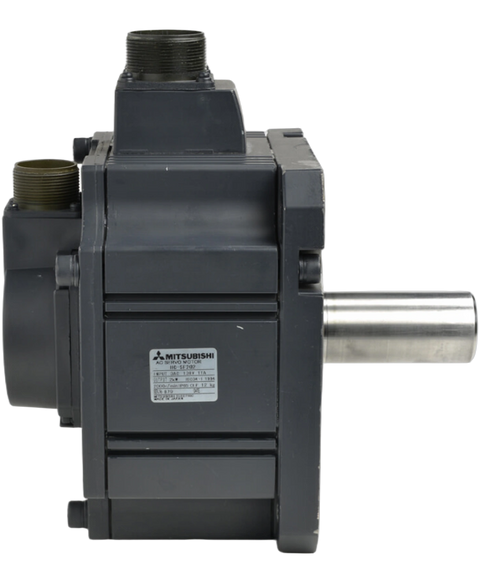

Mitsubishi HC-SF202
The HC-SF202 from Mitsubishi’s MELSERVO HC series is engineered as a middle-inertia AC servo motor capable of 2 kilowatts of output power. It operates reliably at a rated current of 11 Amps and can peak at 33 Amps.
This Mitsubishi HC-SF202 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805295367.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SF202 |
| Weight | 12.00 lbs (5.44 kg) |
| Servo Motor Type | Middle Inertia AC Servo Motor |
| Output Power | 2 kilowatts |
| Rated Current | 11 Amps |
| Maximum Current | 33 Amps |
| Rated Speed | 2000 RPM |
| Environmental Resistance | IP65 |
| Maximum Speed | 2500 RPM |
| Rated Torque | 9.55 Nm |
| Maximum Torque | 28.5 Nm |
| Absolute Position Detector | Supported |
| Capacity | Middle Capacity |
| Brand | Mitsubishi |
