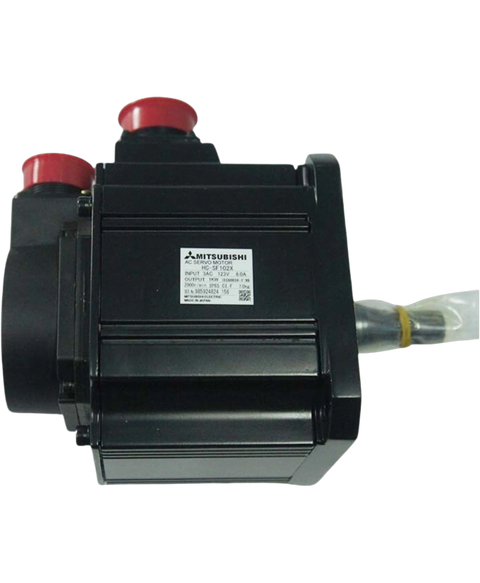

Mitsubishi HC-SF102X
The Mitsubishi HC-SF102X AC Servo Motor is a powerful motor built for accurate motion control in manufacturing settings. Accurate positioning is guaranteed by its 1000W output power rating, 6A current rating, and absolute position detector. It can withstand extreme temperatures and pressures thanks to its IP65 rating. The motor's continuous working duty at 1.0 kW and 4.78 Nm rated torque makes it a solid choice for many applications in the industry.
This Mitsubishi HC-SF102X is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805456670.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-SF102X |
| Weight | 15.00 lbs (6.80 kg) |
| Type | AC Servo Motor |
| Output Power | 1000W |
| Current | 6 AMP |
| Voltage | 123V |
| Output Speed | 2000 RPM |
| Inertia Moment (J) | 13.7 x 10^4 kg m² |
| Environmental Resistance | IP65 |
| Rated Output [kW] | 1 |
| Rated Torque [N m] | 4.78 |
| Maximum Speed [r/min] | 3000 |
| Maximum Torque [N m] | 14.4 |
| Speed/Position Detector | Encoder common to absolute position and incremental detection systems (Resolution per servo motor 1 rotation: 16384 pulse/rev) |
| Brand | Mitsubishi |
