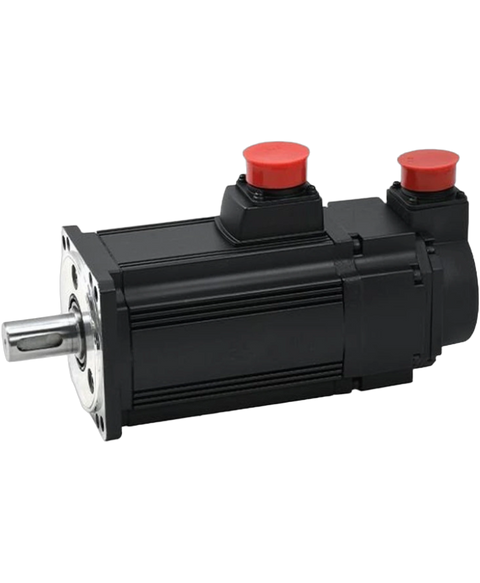

Mitsubishi HC-RP203B
The HC-RP203B by Mitsubishi belongs to the MELSERVO HC series, designed as an ultra-low inertia servo motor. It provides a rated output of 2 kW, with both rated and maximum torque specifications being 6.37 Nm and 15.9 Nm, respectively.
This Mitsubishi HC-RP203B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805295068.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-RP203B |
| Weight | 6.81 lbs (3.09 kg) |
| Rated Output | 2 kW |
| Rated Torque | 6.37 Nm |
| Maximum Torque | 15.9 Nm |
| Enclosure Type | IP65 |
| Rated Inertia | 2.65 kg·cm² |
| Mounting Mode | Flange Mounting |
| Rated Rotational Speed | 3000 rpm |
| Maximum Speed | 4500 rpm |
| Brake | Electromagnetic Brake |
| Rated Current | 14A |
| Maximum Current | 37A |
| Operating Temperature | 0 to +40 °C |
| Storage Temperature | -15 to +70 °C |
| Brand | Mitsubishi |
