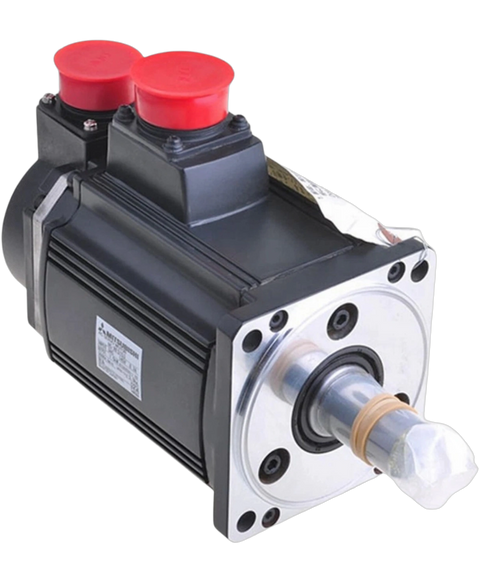

Mitsubishi HC-RFS203K
The HC-RFS203K from Mitsubishi is a high-performance servo motor designed for precise applications. Offering low inertia and middle capacity, it operates efficiently at a rated speed of 3000 RPM and provides 2 kilowatts of output power.
This Mitsubishi HC-RFS203K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805661793.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-RFS203K |
| Weight | 14.00 lbs (6.35 kg) |
| Motor Type | Ultra Low Inertia and Middle Capacity Servo Motor |
| Oil Seal | Supported |
| Enclosure Protection Rating | IP65 |
| Current Rating | 14 Amps |
| Maximum Current | 37 Amps |
| Brake Type | None |
| Insulation Class | Class F |
| Structure | Completely Enclosed Structure |
| Shaft Option | Keyway |
| Rated Torque | 6.37 N-m |
| Maximum Torque | 15.9 N-m |
| Encoder Resolution | 131072 Pulses Per Revolution |
| Rated Speed | 3,000 RPM |
| Output Rating | 2 kilowatts |
| Brand | Mitsubishi |
