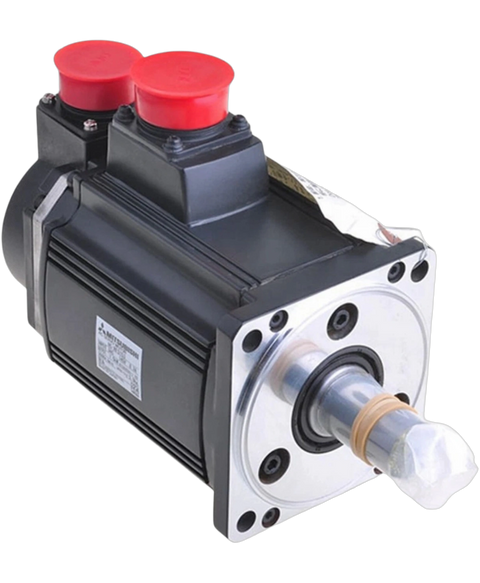

Mitsubishi HC-RFS153K
The HC-RFS153K by Mitsubishi is a brushless servo motor designed for mid-capacity applications. With a rated output power of 1.5 kilowatts, it operates efficiently at a rated speed of 3000 RPM and can achieve a maximum speed of 4500 RPM.
This Mitsubishi HC-RFS153K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805675921.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-RFS153K |
| Weight | 11.44 lbs (5.19 kg) |
| Motor Type | Brushless Servo Motor |
| Inertia | Ultra-Low Inertia |
| Capacity | Middle Capacity |
| Rated Speed | 3000 RPM |
| Maximum Speed | 4500 RPM |
| Rated Output Power | 1.5 kilowatts |
| Rated Current | 8.8A |
| Maximum Current | 23.4A |
| Instantaneous Permissible Speed | 5175 RPM |
| Insulation Class | Class F |
| Operating Temperature | 0 to 40 degrees Celsius |
| Brand | Mitsubishi |
