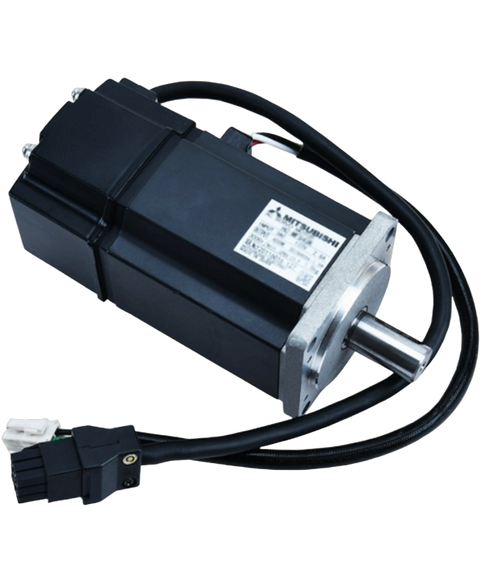

Mitsubishi HC-PQ43K-UE
The Mitsubishi HC-PQ43K-UE servo motor is a powerful and efficient MELSERVO motor with an output power rating of 400 kW. It delivers precise performance with 1.27 Nm of rated torque and 2.92 Nm of maximum torque. The HC-PQ43K-UE servo motor can operate at a rated speed of 3000 rpm and at a maximum speed rating of 4500 rpm. It has a power supply capacity of 0.9 kVA, a rated current value of 2.8 A, and a maximum current value of 6.44 A.
This Mitsubishi HC-PQ43K-UE is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805614114.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-PQ43K-UE |
| Weight | 3.69 lbs (1.67 kg) |
| Model Type | Servo motor |
| Rated Output | 400 kW |
| Rated Torque | 1.27 Nm |
| Maximum Torque | 2.92 Nm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 4500 rpm |
| Recommended Load-to-Rotor Inertia Ratio | 30 times or less |
| Power Supply Capacity | 0.9 kVA |
| Rated Current | 2.8 A |
| Maximum Current | 6.44A |
| Speed/Position Detector | Encoder |
| Structure | Totally enclosed, self-cooled (IP44 rating) |
| Brand | Mitsubishi |
