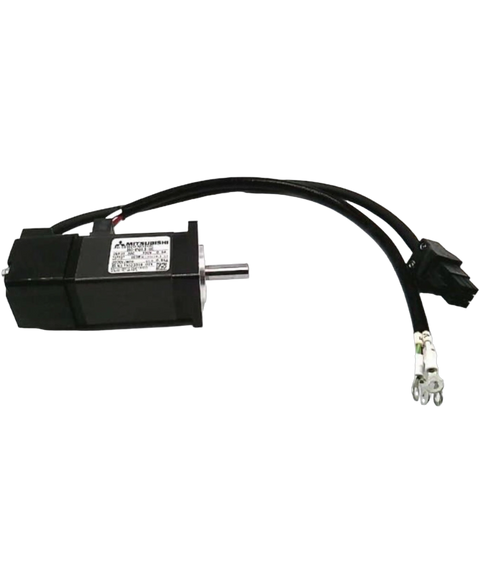

Mitsubishi HC-PQ13-UE
The HC-PQ13-UE servomotor from Mitsubishi's MELSERVO HC series is designed for precision control. This unit provides a rated output power of 100W and can achieve a rated rotation speed of 3000 RPM, with a top speed of 4500 RPM, making it suitable for various applications.
This Mitsubishi HC-PQ13-UE is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805669183.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-PQ13-UE |
| Weight | 1.13 lbs (0.51 kg) |
| Type of Product | Servomotor |
| Rated Output Power | 100W |
| Rated Rotation Speed | 3000 RPM |
| Maximum Rotation Speed | 4500 RPM |
| Power Rate at Rated Torque | 34.13 kW/s |
| Speed/Position Detector | Encoder |
| EN Standard | Compatible |
| Instantaneous Permissible Speed | 5400 RPM |
| Enclosure Rating | IP44 |
| Operating Temperature | 32 to 104 degrees Fahrenheit (Non-Freezing) |
| Storage Temperature | 5 to 158 degrees Fahrenheit (Non-Freezing) |
| Brand | Mitsubishi |
