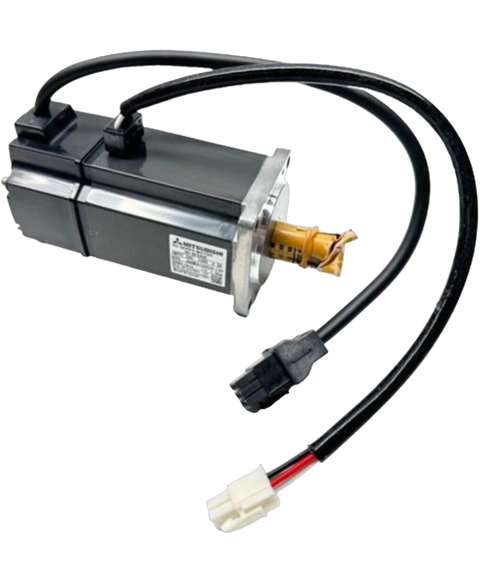

Mitsubishi HC-MFS73K
The Mitsubishi HC-MFS73K MELSERVO series motor is a servo motor featuring a keyway shaft design. Its rated output power is 0.75 kW, its rated torque is 2.4 Nm, and its rated speed is 3000 r,min. The HC-MFS73K servo motor’s maximum speed rating is 4500 r,min, and its instantaneous permissible speed rating is 5175 r,min. This motor operates at a rated current of 5.1 A, and it can support a maximum current rating of 18 A.
This Mitsubishi HC-MFS73K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805446392.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-MFS73K |
| Weight | 6.31 lbs (2.86 kg) |
| Module Type | Servo motor |
| Shaft Type | Keyway shaft with key |
| Rated Output | 0.75 kW |
| Rated Torque | 2.4 Nm |
| Rated Speed | 3000 r/min |
| Maximum Speed | 4500 r/min |
| Instantaneous Permissible Speed | 5175 r/min |
| Maximum Torque | 7.2 Nm |
| Power Rate at Continuous Rated Torque | 94.43 kW/s |
| Rated Current | 5.1 A |
| Maximum Current | 18 A |
| Structure | Totally enclosed, self-cooled (protection type: IP55) |
| Brand | Mitsubishi |
