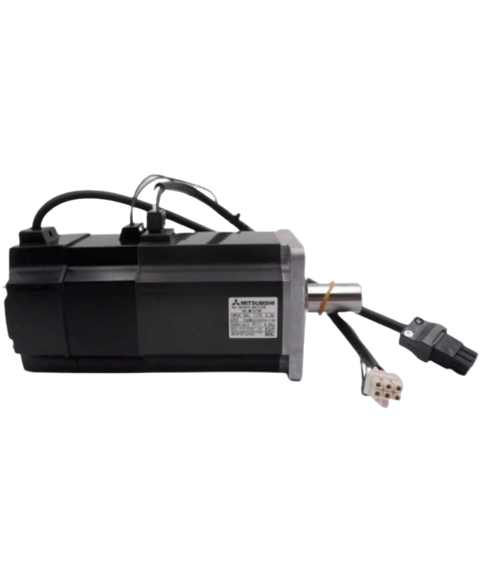

Mitsubishi HC-MFS73B
The Mitsubishi HC-MFS73B servo motor is part of the ultra-low inertia and small capacity series. It features an electromagnetic brake for added control. With a rated output of 0.75 kW and rated torque of 2.4 Nm, it delivers reliable performance at a maximum torque of 7.2 Nm and a rated speed of 3000 RPM, up to 4500 RPM. The motor's encoder provides precise speed and position detection with 131072 pulse,rev resolution. Enclosed, self-cooled, and weighing 4 kg, it offers robust protection (IP55) and a wide operating range.
This Mitsubishi HC-MFS73B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805529801.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-MFS73B |
| Weight | 7.88 lbs (3.57 kg) |
| Model Type | Servo motor |
| Series | ultra-low inertia & small capacity |
| Electromagnetic Brake | Yes |
| Rated output | 0.75 kW |
| Rated torque | 2.4Nm |
| Maximum torque | 7.2 Nm |
| Rated speed | 3000 RPM |
| Maximum speed | 4500 RPM |
| Instantaneous permissible speed | 5175 RPM |
| Inertia moment | 0.725 J |
| Rated current | 5.1A |
| Maximum current | 18A |
| Power rate at continuous rated torque | 94.43 kW/s |
| Structure | Totally enclosed, self-cooled (protection type: IP55) |
| Brand | Mitsubishi |
