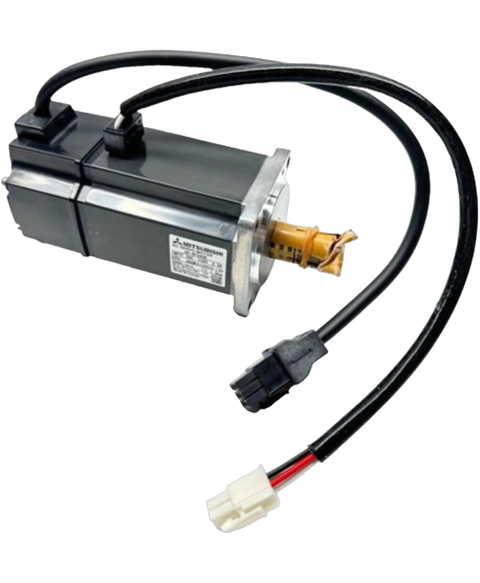

Mitsubishi HC-MF23K
The Mitsubishi HC-MF23K servomotor operates efficiently with a rated output of 200 watts, achieving speeds of up to 3000 RPM. Designed for small capacity applications, it provides ultra-low inertia for quick response times in control systems.
This Mitsubishi HC-MF23K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805402321.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-MF23K |
| Weight | 2.44 lbs (1.11 kg) |
| Product | Servomotor |
| Rated Output | 200 Watts |
| Rated Speed | 3000 RPM |
| Electromagnetic Brake | Not Included |
| Reduction Gear | Not Included |
| Shaft Type | Keyway Shaft with Key |
| Capacity | Small Capacity |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | -15 to 70 degrees Celsius |
| Rated Current | 1.5 Amps |
| Maximum Current | 5 Amps |
| Maximum Speed | 4500 RPM |
| Inertia | Ultra-Low Inertia |
| Insulation Class | Class B |
| Brand | Mitsubishi |
