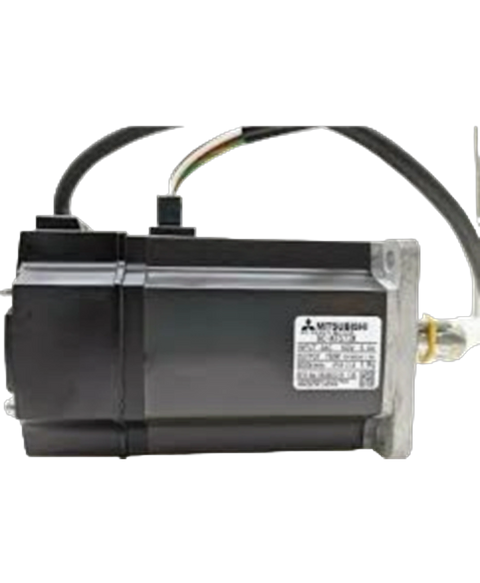

Mitsubishi HC-KFS73K
The Mitsubishi HC-KFS73K servo motor is a powerful and efficient commonly used in different sectors; it improves industrial productivity and precision. The HC-KFS73K is a brushless motor; it improves the motor's dependability and makes it simpler to maintain. The motor is also equipped with an absolute encoder, allowing it to trace its position even when the power is off accurately. The motor uses an IP55 class protection against dust and water. It is rated for use in temperatures ranging from 0 to 40 degrees Celsius.
This Mitsubishi HC-KFS73K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805445020.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | MELSERVO HC |
| Part Number | HC-KFS73K |
| Weight | 6.50 lbs (2.95 kg) |
| Series | MELSERVO J2S |
| Functions | AC brushless rotary servo motor |
| keyed shaft | Yes |
| Capacity | Low inertia / small power capacity |
| Cooling Method | Fan cooling |
| Supply voltage | 200V class |
| Rated current | 5.8 amps |
| Rated active power | 750W / 0.75kW |
| Rotational speed | 3000rpm; 4500rpm (maximum) |
| Torque | 2.4Nm nominal; Maximum 7.2Nm |
| Moment of inertia | 0.000151kg.m2 (1.51kg.cm2) |
| Mounting mode | 80x80mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Brand | Mitsubishi |
