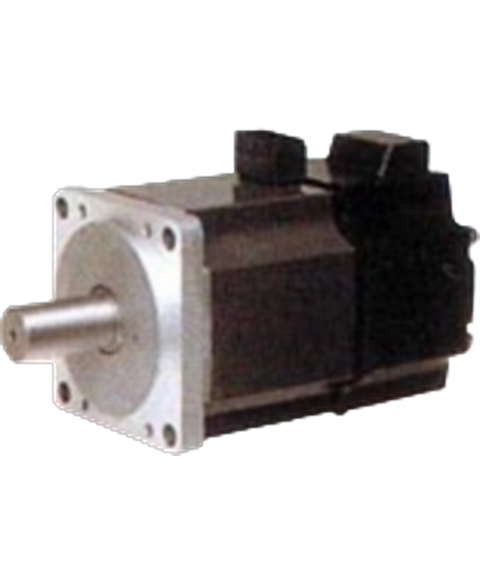

Mitsubishi HC-KFS73B
Model Number HC-KFS73B is a servo motor from Mitsubishi's Melservo J2S product line. This motor operates on a phase-3 power supply from an AC source. It is compatible with the MELSERVO J2S line of servo drivers and amplifiers. The motor comes with an absolute feedback encoder and electromagnetic brake. And it has an 80x80mm flange mounting option for installation and is available in an IP55-rated enclosure assembly.
This Mitsubishi HC-KFS73B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805426644.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC brushless rotary servo motor |
| Product Line | MELSERVO HC |
| Part Number | HC-KFS73B |
| Weight | 9.44 lbs (4.28 kg) |
| Series | MELSERVO J2S (HC-KF) |
| Supply voltage | 200VAC class |
| Rated current | 5.8 amps |
| Rated active power | 750W / 0.75kW |
| Rotational speed | 3000 rpm; 4500rpm (maximum) |
| Torque | 2.4Nm nominal |
| Moment of inertia | 0.0001635kg.m2 (1.635kg.cm2) |
| Mounting mode | 80x80mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP55 |
| Ambient air temperature for operation | 0 - 40 °C |
| Brand | Mitsubishi |
