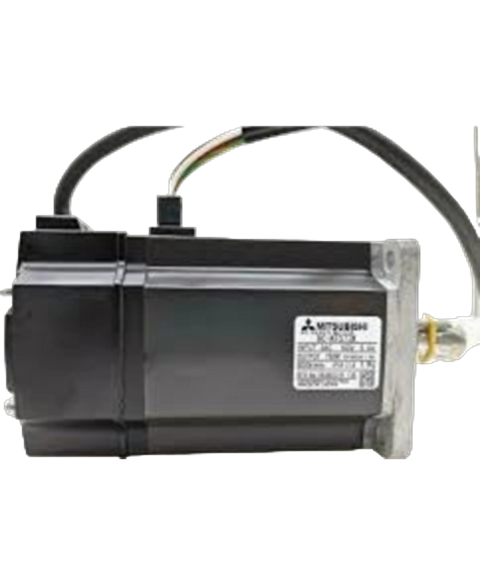

Mitsubishi HC-KFS73
Mitsubishi’s HC-KFS73 servo motor is precise and efficient, performing well at 1.3 kilovolts-amperes and 750 watts. The motor's IP55 classification protects it from dust and water, making it reliable even in harsh conditions. This servo motor provides precise motion control with 2.4 Nm nominal torque and 3000 rev,min rated rotational speed. It uses power efficiently at 5.8 amps at 200 volts AC class supply. Additionally, it equips a straight shaft, an integrated absolute feedback encoder.
This Mitsubishi HC-KFS73 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805612066.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Servo Motor |
| Product Line | MELSERVO HC |
| Part Number | HC-KFS73 |
| Weight | 6.63 lbs (3.01 kg) |
| Series | MELSERVO J2S |
| Voltage | 200 VAC class |
| Output Power Rating | 750 watts |
| IP Rating | IP55 |
| Torque | 2.4 Nm; Max 7.2 Nm |
| Current Rating | 5.8 amps; 18.6 amps max |
| Standard Speed | 3000 rpm |
| Maximum Speed | 4500 rpm |
| Power Facility Capacity | 1.3 kVA |
| Ambient air temperature for operation | 0 to 40 °C |
| Mounting mode | Flange mounting (80x80mm ) |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Brand | Mitsubishi |
