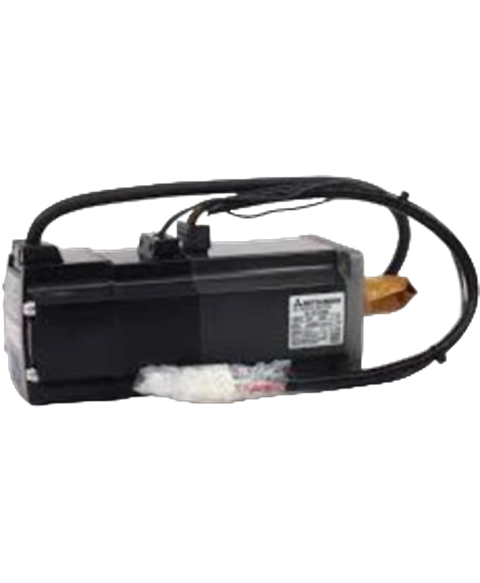

Mitsubishi HC-KFS43BK
The Mitsubishi HC-KFS43BK is an AC rotary servo motor made for industry tools in general. This is an ultra-high-speed motor that can run at either 6000 or 10000 revolutions per minute (r,min). It has the advantage of working at a high frequency and can be mounted on a plate for easy fitting. This motor can be mounted in any direction because it is flexible. The direction of rotation of the output shaft matches the direction of rotation of the output shaft of the servo motor. This makes sure that accuracy and efficiency are maintained in many industrial uses.
This Mitsubishi HC-KFS43BK is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801470745.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Rotary AC Servo Motor |
| Product Line | MELSERVO HC |
| Part Number | HC-KFS43BK |
| Weight | 5.00 lbs (2.27 kg) |
| General industrial machines | Included |
| Ultra-high velocity motor | 6000 or 10000r/min |
| High frequency operation | Included |
| Mounting method | Flange mounting |
| Mounting direction | In any directions |
| Output shaft rotating direction | Same as the servo motor output shaft direction |
| Permissible speed | 4500 r/min |
| Reduction gear efficiency | 58 to 87% |
| Keyway shaft with key | Included |
| Rated power | 400W / 0.4kW |
| Rated torque | 1.3Nm / 0.96ft.lbf |
| Rated rotational speed | 3000rpm |
| Brand | Mitsubishi |
