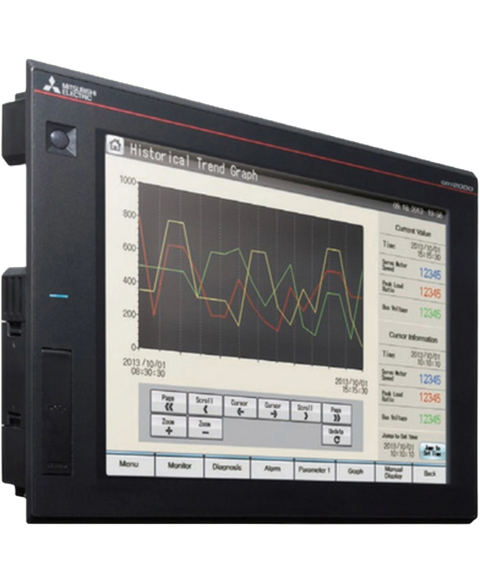

Mitsubishi GT2712-STBA
The Mitsubishi GT2712-STBA is a graphic operation programmable terminal from the GOT2000 series. This terminal features a 12.1-inch TFT LCD and offers a high resolution of 800 x 600 pixels, supporting a broad range of colors.
This Mitsubishi GT2712-STBA is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805606100.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Graphic Operation Programmable Terminal (GOT / PT) |
| Product Line | GOT2000 |
| Part Number | GT2712-STBA |
| Weight | 5.00 lbs (2.27 kg) |
| Display Technology | LCD with TFT color display |
| Screen Resolution | 800 x 600 pixels (SVGA) |
| Screen Size | 12.1-inch diagonal measurement |
| Display Color Support | Supports 65,536 colors |
| Touchscreen Type | Resistive analog touch technology |
| Backlight Specifications | LED (not replaceable) with a lifespan of approximately 60,000 hours at 25°C |
| Communication Interfaces | Ethernet (1 port, 100BASE-TX/10BASE-T, RJ45), USB (2 host, 1 device) |
| Memory Capacity | 57 MB (ROM), 128 MB (RAM) |
| Voltage Input | Accepts 100-240 V AC with a tolerance of +10% to -15% |
| Power Consumption | 44W with maximum load |
| Protective Rating | Front panel: IP67F; Rear: IP2X |
| Temperature Operating Range | Suitable for 0°C to 55°C environment |
| Installation Measurements | Overall: 316 x 246 x 52 mm; Panel cut-out: 302 x 228 mm |
| Brand | Mitsubishi |
