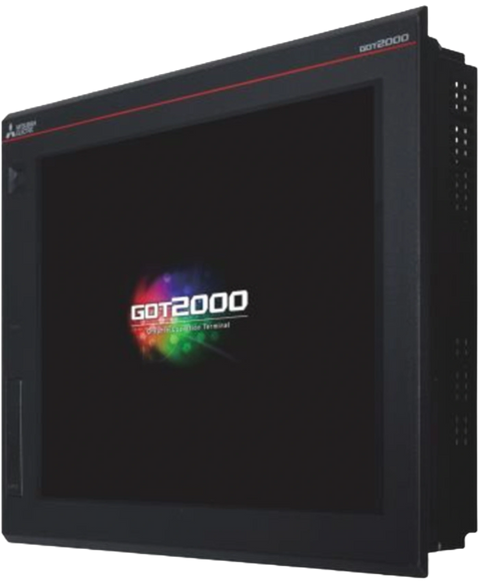

Mitsubishi GT2710-VTBD
The Mitsubishi GT2710-VTBD is an operator interface device featuring a 10.4-inch LCD with a TFT color display. It provides VGA resolution at 640 x 480 pixels and supports 65,536 colors for rich visual representation.
This Mitsubishi GT2710-VTBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805596952.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | GOT2000 |
| Part Number | GT2710-VTBD |
| Weight | 2.06 lbs (0.94 kg) |
| Type | Operator Interface Device (HMI) |
| Screen Technology | LCD with TFT color display |
| Display Dimensions | 10.4 inches diagonal |
| Pixel Resolution | 640 x 480 pixels (VGA standard) |
| Color Depth | 65,536 distinct colors |
| Input Mechanism | Resistive analog touch screen |
| Touch Endurance | Over 1 million presses |
| Power Input Range | 100 to 240 volts AC, ±10%, frequency 50/60 Hz |
| Internal Memory | 57 MB (ROM), 128 MB (RAM) |
| Communication Ports | Includes Ethernet, USB (host and device), RS-232, RS-422/485 |
| Network Speed for Ethernet | Compatible with 100BASE-TX and 10BASE-T |
| USB Host Data Rate | Up to 480 megabits per second |
| Backlight Type | LED (non-replaceable), life approx. 60,000 hours |
| Front Panel Protection Level | Rated to IP67F standards |
| Physical Dimensions | 303 mm (W) x 218 mm (H) x 52 mm (D); panel cutout: 289 mm (W) x 200 mm (H) |
| Brand | Mitsubishi |
