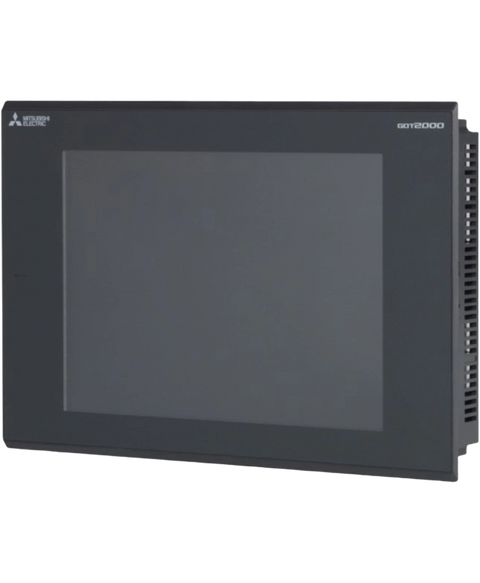

Mitsubishi GT2308-VTBD
The GT2308-VTBD module from Mitsubishi is a graphic operation terminal (GOT) that serves as a human-machine interface (HMI) for industrial automation applications. It equips a color display with an LED backlight, communication protocol, and a black frame. It operates with a supply power of 24 volts DC inputs. This graphic operation terminal improves industrial process management and monitoring with its superior display and sturdy construction. This HMI terminal operates between 0 and 55 degrees Celsius ambient temperature.
This Mitsubishi GT2308-VTBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805606125.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Graphic operation terminal, HMI terminal |
| Product Line | GOT2000 |
| Part Number | GT2308-VTBD |
| Weight | 3.31 lbs (1.50 kg) |
| Panel color | Black |
| Display option | TFT color LCD, 65536 colors |
| Screen size | 8.4 inches |
| Resolution | 640 x 480 dots |
| Display size (W x H) | 170.9 x 128.2 mm (6.73 × 5.05 inch) |
| Supply voltage | 100-240V AC |
| Backlight | LED (not replaceable) |
| Backlight life | Approx. 50000 hours |
| Memory for storage (ROM) | 9 MB |
| Memory for operation (RAM) | 9 MB |
| IP rating | Front IP67F; Inside control panel IP2X |
| Standards | CE, UL, cUL, EAC, KC |
| Brand | Mitsubishi |
