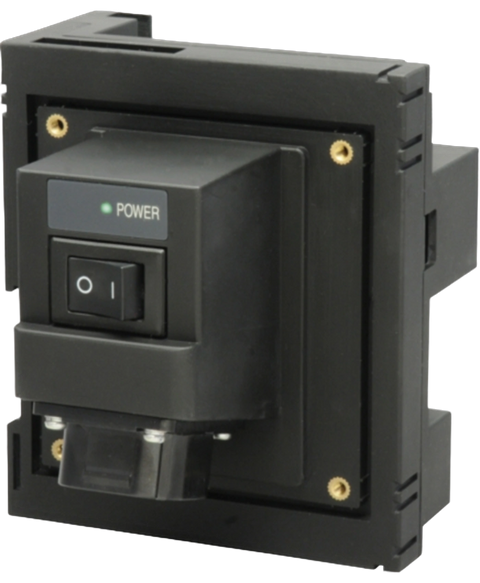

Mitsubishi GT16H-CNB-42S
The GT16H-CNB-42S connector conversion box from Mitsubishi is designed for robust performance. It operates across an ambient temperature range from 0 to 55 °C to ensure reliability in various environments.
This Mitsubishi GT16H-CNB-42S is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Accessories range and is referenced internally as PartLogic SKU PL26805600845.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Connector Conversion Box |
| Product Line | GOT1000 |
| Part Number | GT16H-CNB-42S |
| Weight | 3.00 lbs (1.36 kg) |
| Operating Temperature Range | 0 to 55 °C |
| Storage Temperature Range | -20 to 70 °C |
| Input Voltage Supply | 24 VDC (+10% to -15%) |
| Maximum Power Consumption | 13.7 W (570 mA at 24 VDC) |
| Power Consumption (Device Only) | 2.2 W (90 mA at 24 VDC) |
| Inrush Current | 25 A or less (at maximum load), 2 ms |
| Permissible Power Failure Duration | Up to 5 ms |
| Operation Switch Current Rating | 10 mA at 24 VDC |
| Switch Status Indicator | Closed (pressed) / Open (not pressed) |
| Switch Configuration | SW1 to SW6 (resistance load only) |
| Brand | Mitsubishi |
