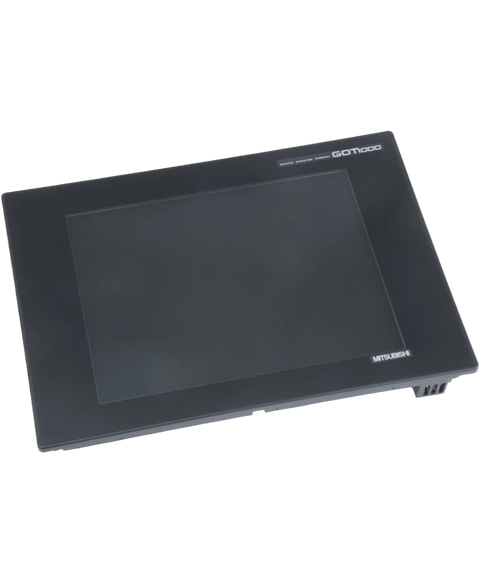

Mitsubishi GT1662-VNBD
The GT1662-VNBD model from Mitsubishi serves as an operator interface within the GOT1000 series. This device features an 8.4-inch TFT color liquid crystal display with a resolution of 640 x 480 dots, facilitating user interaction through its analog resistive touch panel.
This Mitsubishi GT1662-VNBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805600761.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | GOT1000 |
| Part Number | GT1662-VNBD |
| Weight | 15.00 lbs (6.80 kg) |
| Description of Module | Operator Interface |
| Touch Panel | Analog resistive film |
| Key Size | Minimum 2 x 2 dots (per key) |
| Input Power Supply Voltage | 24 VDC |
| Power Consumption | 38W or less |
| Built-in Interface | RS-232, RS-422/485, USB, CF card, Ethernet, Option function board, Extension unit |
| External Dimensions (W x H x D) | 241 x 190 x 52 mm (Excluding USB environmental protective cover) |
| Mass | 1.8 kg (Excluding mounting fixtures) |
| Display Type | TFT color liquid crystal display |
| Screen Size | 8.4 |
| Display Resolution | 640 x 480 [dots] |
| Display Size (W x H) | 171 x 128 mm |
| Display Character | 16-dot standard font: 40 characters x 30 lines (2-byte characters), 12-dot standard font: 53 characters x 40 lines (2-byte characters) |
| Display Color | 16 colors |
| Display Angle | Left/Right: 45 degrees, Top: 20 degrees, Bottom: 20 degrees |
| Brand | Mitsubishi |
