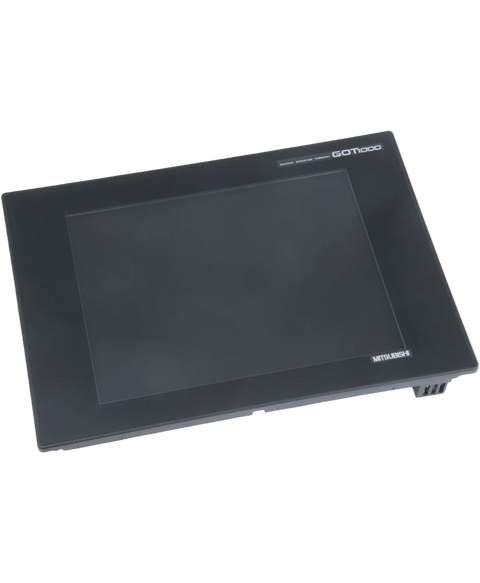

Mitsubishi GT1550-QLBD
The GT1550-QLBD units are graphic operation terminals that operate at a nominal input voltage of 24VDC, with acceptable tolerances ranging from +25% to -20%. This model is designed for efficient power management, consuming a maximum of 15W during normal operation and reducing consumption to 13W when the backlight is off, making it suitable for various applications.
This Mitsubishi GT1550-QLBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805610755.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Graphic Operation Terminal (GOT) |
| Product Line | GOT1000 |
| Part Number | GT1550-QLBD |
| Weight | 2.19 lbs (0.99 kg) |
| Input Voltage | 24VDC, tolerance of +25%, -20% |
| Power Consumption (Normal) | 15W or less (620mA at 24VDC) |
| Power Consumption (Backlight Off) | 13W or less (540mA at 24VDC) |
| Inrush Current | Maximum 60A (for 1ms) |
| Momentary Power Loss Tolerance | Up to 10ms without disruption |
| Noise Immunity | 500Vp-p, 1s noise duration (25-60Hz frequency) |
| Dielectric Strength | 500VDC for 1 minute (power terminals to ground) |
| Insulation Resistance | 10MΩ or higher (tested at 500VDC) |
| Wire Compatibility | Accepts wire size of 0.75mm² to 2mm² |
| Terminal Type Compatibility | M3 screw-type solderless terminals (e.g., RAV1.25-3) |
| Screw Tightening Torque | Between 0.5 to 0.8 N•m |
| Display Features | High-contrast TFT color LCD, 65536 colors |
| Memory | Standard 9MB, expandable to 57MB |
| Data Transfer and Monitoring | Max 115.2kbps communication speed with PLCs |
| Brand | Mitsubishi |
