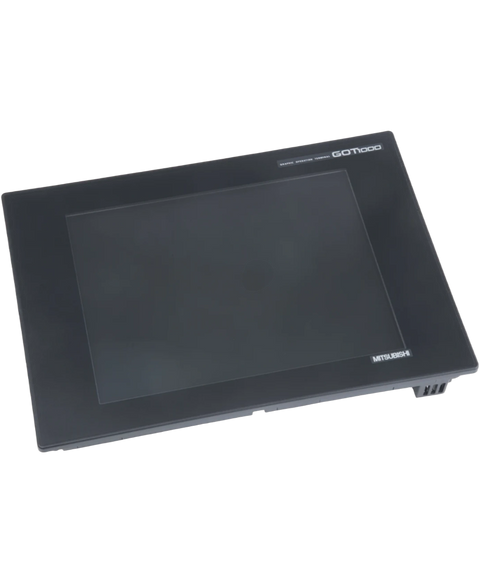

Mitsubishi GT1155-QSBDQ
The Mitsubishi GT1155-QSBDQ terminal is a graphic operation terminal from the GOT1000 and GT11. It comes with a 5.7-inch STN color liquid crystal screen. The GT1155-QSBDQ terminal’s screen has a resolution of 320x240 dots. The screen supports 256 colors and up to 300 touch keys that are organized in a matrix of 15 lines by 20 columns. The GT1155-QSBDQ terminal supports intuitive navigation and easy project data storage in its 3 Mbyte of internal flash memory.
This Mitsubishi GT1155-QSBDQ is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805673297.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | GOT1000 |
| Part Number | GT1155-QSBDQ |
| Weight | 1.00 lbs (0.45 kg) |
| Model Type | Graphic operation terminal |
| Screen Size | 5.7 |
| Resolution | 320 x 240 dots |
| Display Size (WxH) | 115 x 86 mm |
| Display Colors | 256 colors |
| Number of Touch Keys | 300 keys/screen (matrix of 15 lines x 20 columns) |
| Display Character | 16-dot standard font: 20 characters 15 lines, 12-dot standard font: 26 characters 20 lines (Horizontal format) |
| Memory | Flash memory (Internal), for storing project data (3Mbytes) and OS |
| Battery | GT11-50BAT lithium battery |
| Input Power Supply Voltage | DC 24V(+10% -15%)ripple voltage 200mV or less |
| Power Consumption | 9.72W (405mA/24VDC) or less |
| Brand | Mitsubishi |
