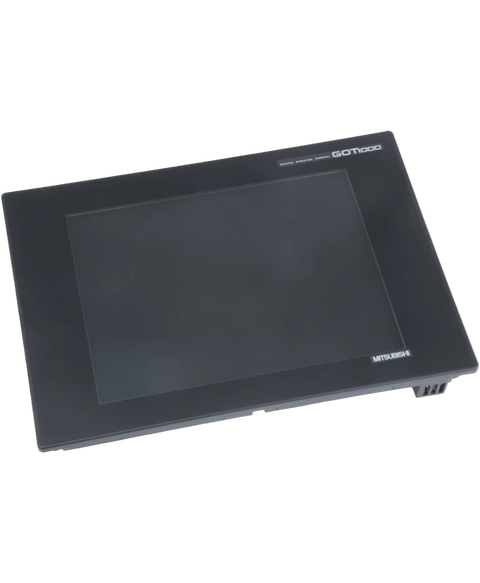

Mitsubishi GT1155-QSBD
The Mitsubishi GT1155-QSBD functions as a graphic operation terminal essential for industrial applications. This terminal features a 5.7-inch display with a 320 x 240 pixel resolution, providing clear visuals in a compact design.
This Mitsubishi GT1155-QSBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805656002.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Graphic Operation Terminal |
| Product Line | GOT1000 |
| Part Number | GT1155-QSBD |
| Weight | 0.69 lbs (0.31 kg) |
| Display Resolution | 320 x 240 pixels |
| Screen Size | 5.7 inches |
| Display Area Dimensions | Width: 115 mm (4.53”), Height: 86 mm (3.39”) |
| LCD Screen Type | STN color liquid crystal |
| Contrast Adjustment Levels | 16 adjustable levels |
| Display Mode | Monochrome, 16 shades |
| Maximum Display Characters | 20 characters x 15 lines (16-dot font); 26 characters x 20 lines (12-dot font) |
| Screen Brightness | 350 cd/m² (8 levels, for Hardware A, B); 380 cd/m² (8 levels, for Hardware C onward) |
| Input Power Specifications | 24V DC (+10%/-15%), power use up to 9.84W |
| Touch Key Capacity | 300 keys per screen, 15x20 matrix structure |
| Memory Types | Flash (3MB for OS/project data), SRAM (512KB, battery backup) |
| Battery Type | Lithium GT11-50BAT |
| Protective Enclosure | Front is IP67-equivalent with protective cover attached |
| Backlight | Cold cathode fluorescent, includes automatic shutoff detection |
| Brand | Mitsubishi |
