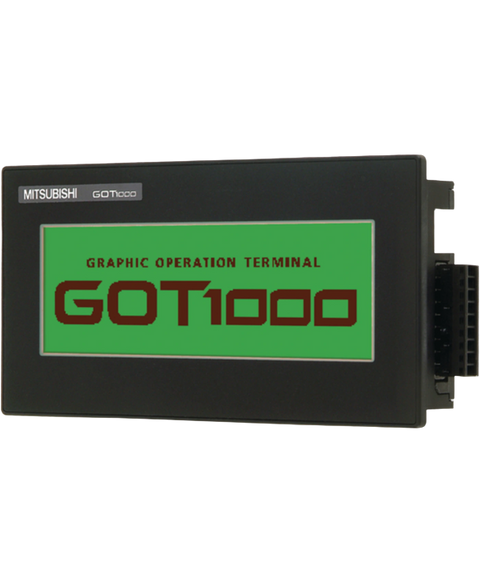

Mitsubishi GT1030-HBD
The GT1030-HBD from Mitsubishi is a graphic operation terminal engineered for efficient human-machine interface applications. It features a monochrome STN liquid crystal display with 288 x 96 dots resolution. The unit weighs 0.3 kg and has a maximum capacity of 50 touch keys on its matrix resistive panel.
This Mitsubishi GT1030-HBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805619841.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Graphic Operation Terminal |
| Product Line | GOT1000 |
| Part Number | GT1030-HBD |
| Weight | 0.63 lbs (0.28 kg) |
| Display Technology | Monochrome STN Liquid Crystal |
| Touch Key Capacity | Maximum 50 keys per screen (Matrix resistive panel) |
| Life Expectancy | Approximately 50,000 hours at 25°C |
| Resolution | 288 x 96 dots (Horizontal format) |
| External Dimensions | W145 x H76 x D29.5 mm (Horizontal format) |
| Key Size | Minimum 16 x 16 dots |
| Character Display | 36 characters x 6 lines (16-dot font) |
| Contrast Adjustment | 16 levels |
| PC Communication Interface | RS-232 (1 channel), RS-422/485 (1 channel) |
| Screen Size | 4.5 inches |
| Display Color | Monochrome (White/Black) |
| Intensity Adjustment | 8 levels |
| PLC Communication Interface | RS-422 (1 channel) |
| Brand | Mitsubishi |
