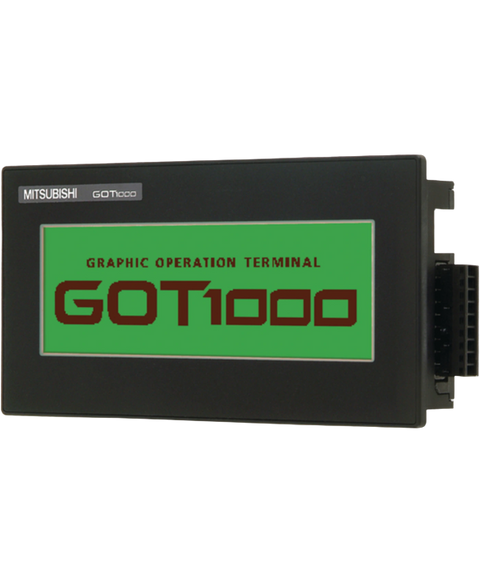

Mitsubishi GT1020-LBDW
The Mitsubishi GT1020-LBDW is a compact HMI touchscreen tailored for user interaction. This device features a 3.7-inch STN monochrome liquid crystal display, offering a clean white and black interface. With a resolution of 160 x 64 dots, it supports character display capabilities of 20 characters across 4 lines using a standard font size. The viewing angles are moderate, allowing 30° side visibility and 20° from the top, facilitating an adequate user experience from various positions.
This Mitsubishi GT1020-LBDW is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805620104.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | HMI Touchscreen |
| Product Line | GOT1000 |
| Part Number | GT1020-LBDW |
| Weight | 0.63 lbs (0.28 kg) |
| Display Technology | STN Monochrome Liquid Crystal (White/Black) |
| Screen Dimensions | 3.7 inches (W86.4 x H34.5 mm) |
| Resolution | 160 x 64 dots |
| Character Display | 20 characters x 4 lines (16-dot standard font) |
| Viewing Angle | Left/Right: 30°, Top: 20°, Bottom: 30° |
| Backlight Options | LED (White, Red, Pink) |
| Touch Key Capacity | Up to 50 keys/screen (Analog resistive) |
| Memory Storage | 512 kbytes Flash ROM (for project data, OS, etc.) |
| Environmental Rating | IP67 (front section) |
| Power Supply Requirement | 24VDC (+10% -15%) |
| Power Consumption | 1.9W (backlight off), 1.2W (minimum) |
| Communication Protocols | RS-422/485 (PLC), RS-232 (PC) |
| Fuse Rating | Built-in 0.4A (not replaceable) |
| Brand | Mitsubishi |
