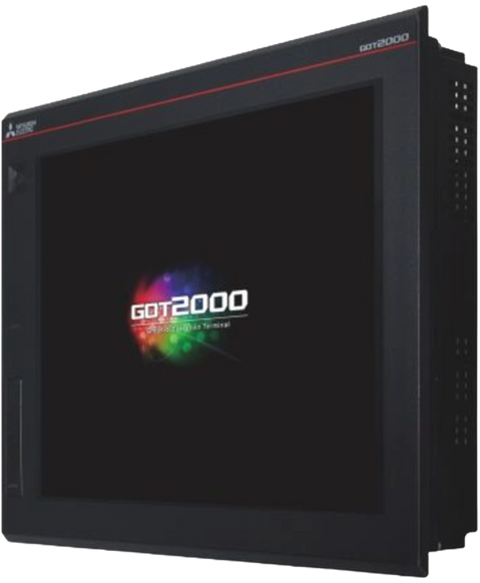

Mitsubishi GS2110-WTBD
The Mitsubishi GS2110-WTBD terminal belongs to the GOT SIMPLE series and functions as a Graphic Operation Terminal (GOT). It operates at 24 VDC with a maximum ripple voltage rating of 200 mV, and it consumes 7.6 W of power or less. The TFT color liquid crystal display measures 10 inches diagonally, with a resolution of 800 x 480 dots, and it supports 65536 colors and a 32-level brightness adjustment feature for its LED-type backlight.
This Mitsubishi GS2110-WTBD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805635571.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | GOT2000 |
| Part Number | GS2110-WTBD |
| Weight | 4.06 lbs (1.84 kg) |
| Module Type | Graphic Operational terminal (GOT) |
| Series | GOT SIMPLE series |
| Input Power Supply Voltage | 24 VDC, ripple voltage 200 mV or less |
| Power Consumption | 7.6 W (317 mA/ 24V) or less |
| Inrush Current | 17A or less (6 ms, 25°C, at the maximum load) |
| Display Type | TFT color liquid crystal |
| Screen Size | 10 inch |
| Display Resolution | 800 x 480 dots |
| Display Size (W x H) | 222 x 132.5 mm |
| Display Character | 16-dot standard font: 50 characters x 30 lines (horizontal format) |
| Display Color | 65536 colors |
| Protective Structure | IP65F (only part of the panel) |
| Built-in Interface | RS-422, RS-232, Ethernet, USB, SD card |
| Flash Memory | 9 MB |
| Brand | Mitsubishi |
