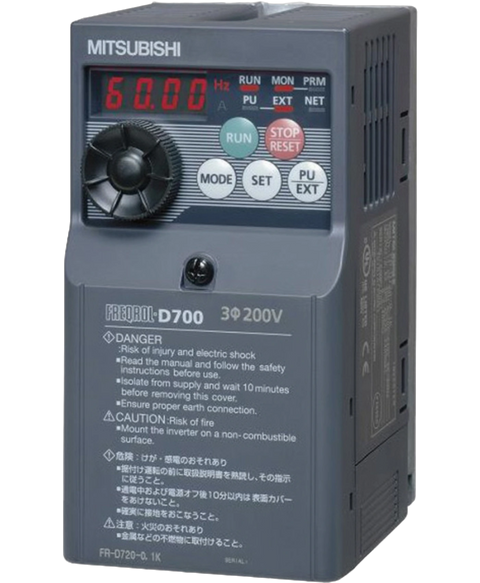

Mitsubishi FR-D740-036-NA
Inverter drive, fr-d700 series, three-phase, 400 v, 3.6A, 2HP, us,ca,mx specification
This Mitsubishi FR-D740-036-NA is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26935487992.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | FR-D740-036-NA |
| Series | FREQROL FR-D700 |
| Input voltage | 380–480 Vac, 3-phase (400/415/440 Vac nominal) |
| Rated power | 1.5 kW / 2 HP |
| Rated current | 3.6 A |
| Output frequency | 0.2–400 Hz |
| Apparent power | 2.7 kVA |
| Overload capacity | 150% for 60 s, 200% for 0.5 s (inverse-time) |
| Control and functions | Soft-PWM, high carrier PWM, slip compensation, multi-speed, frequency jump, PID, offline auto-tuning, optimum excitation, speed smoothing |
| Safety and protection | SS1 dual-channel inputs, safety monitor output, overcurrent/overvoltage/thermal, phase loss, ground fault, stall prevention |
| Communication | Modbus RTU (RS‑485) |
| Cooling | Forced air |
| Enclosure rating | IP20 |
| Design region | US/CA/MX specification |
| Standards | EN ISO 13849-1 Cat.3, EN62061, IEC61508 SIL2, PL d |
| Equivalent code | FRD740036NA |
