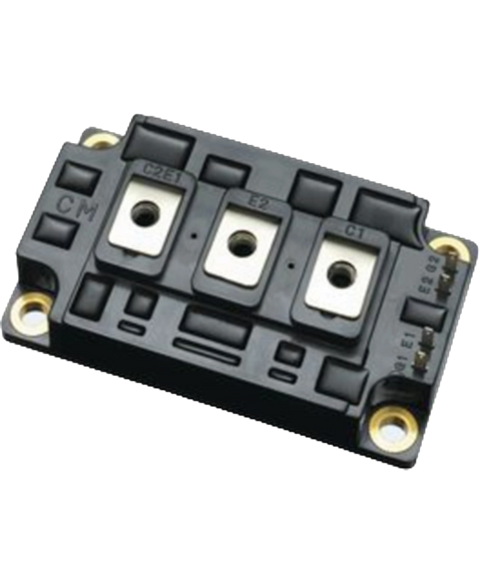

Mitsubishi CM150DY-24H
IGBT module, 1200V, 150A, N-channel.
This Mitsubishi CM150DY-24H is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power semiconductors > Igbt modules range and is referenced internally as PartLogic SKU PL26805430610.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Collector Emitter Voltage (VCEO) | 3.4 V |
| Input | Standard |
| Input Capacitance | 30 nF |
| Max Collector Current | 150 A |
| Max Operating Temperature | 150 °C |
| Max Power Dissipation | 1.1 kW |
| Min Operating Temperature | -40 °C |
| Mount | Chassis Mount |
| NTC Thermistor | No |
| Number of Pins | 7 |
| Power Dissipation | 600 W |
